Product Introduction

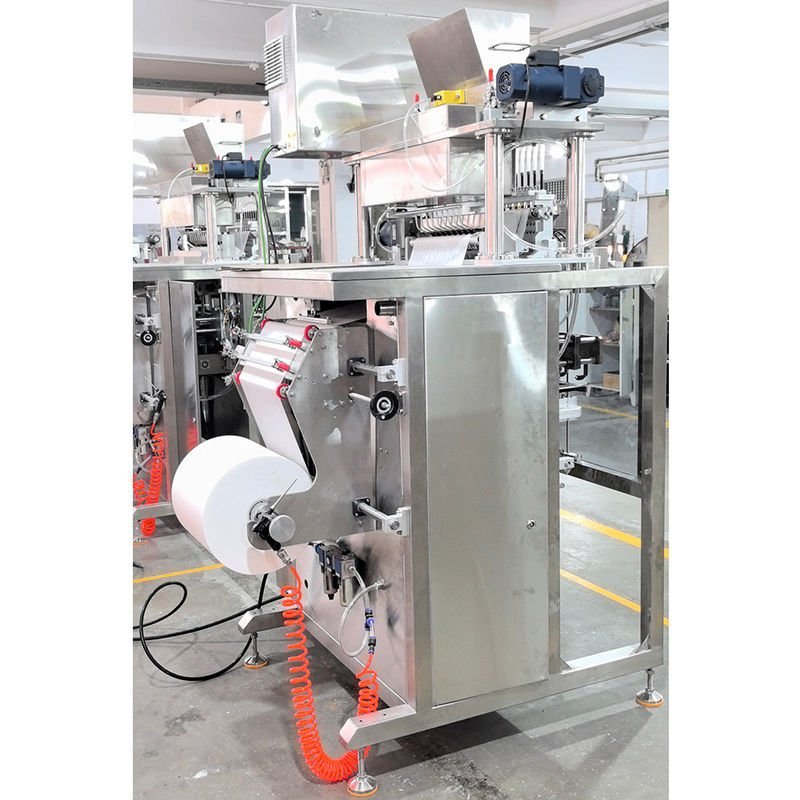

The Multi-Lane Granule Packaging Machine represents a significant leap forward in automated packaging technology, engineered to deliver unparalleled efficiency and flexibility for high-volume production lines. Designed with modularity at its core, this machine supports customizable lane configurations including 2, 4, 6, 8, 10, and 12 lanes, allowing seamless adaptation to diverse production scales and output demands. Constructed from premium food-grade 304/316 stainless steel, it guarantees exceptional durability, stringent hygiene compliance, and a prolonged operational lifespan. At the heart of its performance lies a fully integrated servo motor control system, which drives superior accuracy, unwavering stability, and high-speed packaging cycles, making it an indispensable asset for continuous, industrial-scale manufacturing environments.
Product Features
The machine is distinguished by a suite of advanced features engineered to maximize productivity, ensure reliability, and provide operational versatility.
High-Efficiency Multi-Lane Production
This system fundamentally transforms output capacity by operating multiple packaging lanes concurrently. This parallel processing capability delivers a dramatic increase in production volume compared to traditional single-lane machines. Each independent lane is capable of achieving a packaging speed of 30 to 45 bags per minute, enabling the machine to maximize overall throughput, significantly reduce manufacturing cycle times, and optimize return on investment.
Flexible Configuration and Effortless Adjustment
Versatility is a cornerstone of this packaging solution. Beyond the customizable number of lanes, the machine can be easily and quickly adjusted to accommodate a wide range of bag sizes, filling volumes, and various packaging film materials. Its compatibility extends to handling both granular and powdered substances through interchangeable, high-precision metering systems, allowing for rapid product changeovers with minimal downtime.
Stable and Precise Servo Control System
Engineered for precision and reliability, the machine is equipped with a comprehensive full-servo control system complemented by high-grade mechanical components. This sophisticated integration ensures exceptionally smooth operation, accurate and consistent film pulling, and uniform, high-integrity sealing on every package. The result is a significant reduction in machine stoppages, waste, and maintenance requirements, guaranteeing dependable and consistent long-term production performance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Packaging Materials | Granules / Powder |
| Packaging Range | 2–6 g |
| Measuring Accuracy | ±5% (depending on material and filling volume) |
| Packaging Speed | 30–45 cuts/min × 2–12 lanes |
| Packaging Film Width | 320 mm |
| Bag Size | Bag width 24 mm × Bag length ≤ 177 mm |
| Sealing Method | Twist-edge sealing |
| Back Seal Width | 5 mm, plain |
| Horizontal Seal Width | 9 mm, single-sided texture with vertical stripes (1.5 mm spacing) |
| Cutting Method | Irregular rounded corner cutting with independent cutter |
| Easy Tear Opening | One-cut easy tear opening (optional) |
| Photoelectric Sensor | LX101 photoelectric |
| Bag Pulling Method | Servo motor synchronous belt bag pulling |
| Packaging Film | Composite packaging materials |
| Operating Voltage | 380V / 50Hz three-phase (12–15 KW depending on lanes) |
| Air Source Pressure | 6 Kg |
| Air Consumption | 1 m³/min |
| Machine Weight | 800 KG |
Customizable Options
| Customization Type | Options |
|---|---|
| Lane Configuration | 2 / 4 / 6 / 8 / 10 / 12 lanes |
| Metering System | Granule cup filler, powder filler, liquid pump |
| Bag Size | Custom bag width and length |
| Packaging Film | Various laminated or composite films |
| Easy Tear Feature | Optional easy tear opening |
| Coding System | Date coding or batch printing system |
Application Fields
This Multi-Lane Granule Packaging Machine is engineered to excel across a broad spectrum of industries that demand high-speed, precise, and reliable small-sachet packaging solutions. Its primary application areas include:
-
Food and Beverage Industry: Ideal for packaging sugar, salt, instant coffee powder, tea granules, spices, seasoning mixes, and powdered drink concentrates.
-
Daily Chemical Products: Perfect for packaging single-dose detergents, laundry powders, fabric softeners, dishwasher salts, and other household chemical granules.
-
Pharmaceutical and Healthcare Products: Suited for packaging medicinal granules, powdered supplements, herbal extracts, and single-dose pharmaceutical powders requiring hygienic and accurate filling.
-
Chemical and Industrial Materials: Effective for packaging small quantities of industrial compounds, adhesive powders, catalyst granules, seed coatings, and other specialized granular materials.
The machine is specifically designed for products requiring efficient, automated packaging of small-dose materials, ensuring consistent quality, enhanced productivity, and operational flexibility for modern manufacturing facilities.
