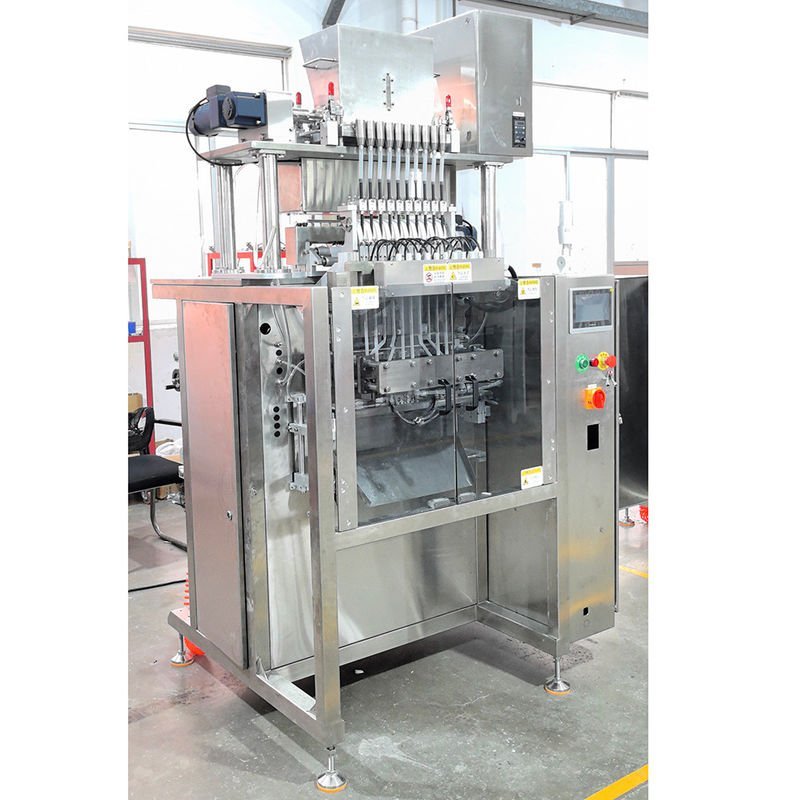

DS180/2 Double-Row Back-Sealing Automatic Packaging Machine
The DS180/2 Double-Row Back-Sealing Automatic Packaging Machine represents a significant advancement in high-efficiency sachet production for granular, powdered, and liquid products. Engineered for demanding production environments, this machine integrates film forming, precision dosing, sealing, and cutting into a robust, multi-row system. Constructed with 304 stainless steel on all product-contact surfaces, it guarantees superior hygiene and corrosion resistance. Designed around a multi-row collar forming structure with a capacity up to 180 mm and supported by reliable photoelectric tracking, the DS180/2 delivers exceptional consistency in bag shape and seal integrity, making it an ideal solution for high-throughput, small-dose packaging operations that demand both speed and unwavering quality.
Product Features
Enhanced Productivity with Double-Row Output: The dual-column design is a cornerstone of this machine’s efficiency, effectively doubling output capacity without compromising operational stability. Capable of sustained high-speed performance at 30 to 50 bags per column per minute, it provides a scalable foundation for production lines that require reliable, continuous operation to meet growing market demands.
Superior Seal Integrity with Back-Sealing Technology: Utilizing a sophisticated back-sealing mechanism with twisted-edge adhesive sealing, the machine produces sachets with exceptionally clean and secure seals. The straight horizontal sealing pattern, featuring a precise 1.2 mm spacing, ensures a uniform professional appearance. Controlled sealing widths—5 mm for vertical and 8 mm for horizontal seals—further enhance the mechanical strength and consistency of every package, significantly reducing the risk of leaks or seal failures.
Precision Tracking and Consistent Bag Formation: Equipped with a high-sensitivity photoelectric eye for accurate film mark detection, the system minimizes material misalignment and waste, particularly when using pre-printed packaging films. A variable-frequency motor drives the bag-pulling mechanism, enabling precise control over bag length and ensuring smooth, stable film transport across the entire speed range, from startup to maximum operational velocity.
Intelligent Control and Operational Reliability: At the heart of the machine is a user-friendly control system combining a clear text display with a robust OMRON PLC. This setup enables real-time error prompting and system self-diagnosis, facilitating quick troubleshooting and minimizing downtime. Dual PID temperature controllers (OMRON) provide exacting thermal management for the sealing jaws, ensuring optimal seal quality across various composite film materials and improving overall production yield.
Versatile and Hygienic Metering Solutions: To accommodate a diverse range of products, the DS180/2 can be configured with specialized, high-precision metering devices. Options include dedicated systems for granules/particles, free-flowing powders, or viscous liquids. Each metering unit is engineered for repeatable filling accuracy, and like the main machine, all wetted parts are fabricated from 304 stainless steel, upholding the highest standards of hygiene and durability.
Robust Industrial Construction: Built for longevity in industrial settings, the machine features a rigid frame and utilizes high-quality Taiwan AIRTAC pneumatic components for dependable operation. The separation process employs a blade method without a flash device, coupled with pattern cutting, to deliver neatly trimmed bag edges and a polished final product presentation, batch after batch.
Technical Specifications
| Model | DS180/2 Double-Row Back-Sealing Automatic Packaging Machine |
| Packaging Materials | Particles, Powders, Liquids |
| Packaging Speed | 30–50 bags/column/minute |
| Packaging Capacity | 1–30 g (configurable); up to 0–100 ml (dosing device dependent) |
| Forming System | ≤ 180 mm Multi-Row Collar Forming |
| Bag Size Range (Double Row) | Width: 15–80 mm; Length: 60–150 mm (×2 rows) |
| Film Material | Composite Films (e.g., BOPP/PE) |
| Material Separation Method | Blade Separation (without flash device) |
| Sealing Type | Back Sealing (Twisted Edge Adhesive Sealing) |
| Horizontal Sealing Pattern | Straight Pattern (Spacing: 1.2 mm) |
| Sealing Width | Vertical: 5 mm; Horizontal: 8 mm |
| Cutting Method | Pattern Cutting (Spacing: 3 mm) |
| Bag Pulling Method | Variable-Frequency Motor |
| Photoelectric Eye | Autonics / JULONG (Configuration Dependent) |
| Control System | Text Display + OMRON PLC; Error Prompt; Self-Diagnosis; Dual PID Temperature Control |
| Pneumatic Components | Taiwan AIRTAC |
| Air Source Pressure | 6 kg/cm² |
| Air Consumption | 0.3 m³/min |
| Power Supply | 220 V / 50 Hz, 1.5 kW, Single-Phase |
| Machine Weight | Approx. 345 kg |
| Product-Contact Material | 304 Stainless Steel |
Optional Metering Devices
G80/2.05 Two-Column Swinging Particle Metering Head
| Measurement Range | 1–20 ml (adjustable; ≤ ±20% adjustment range) |
| Accuracy | ±1–5% (subject to product characteristics & fill volume) |
| Drive System | Pneumatic |
| Product-Contact Material | 304 Stainless Steel |
CCL-1L/2 Two-Column Powder Auger Metering Device
| Measurement Range | 0.3–100 g (via interchangeable spiral attachments) |
| Accuracy | ±0.3–1% (subject to powder characteristics) |
| Filling Speed | ≤ 100 kg/min |
| Total Power | 1170 W (includes 400 W Schneider servo motor) |
| Agitation Motor | 370 W |
| Control System | 2 Independent metering & adjustment systems; Hopper low-material alarm |
| Standard Configuration | Includes measuring screws, vertical screws, and in-bag feeding structure |
| Construction Material | 304 Stainless Steel (exterior & all product-contact parts) |
| Key Accessory | Electric Lifting Device |
LF300A/2 Dual-Head Liquid Pump Metering Device (with Feeding Pipe Lifting)
| Filling Speed | 300–6000 ml/min (per head) |
| Accuracy | ±1% |
| Rated / Inlet Pressure | 3 bar / 3 bar |
| Viscosity Range | 0–3000 CPS |
| Fluid Temperature Range | -10 ℃ to 100 ℃ (non-freezing) |
| Operating Environment | -10 ℃ to 50 ℃; Humidity ≤ 85%; Altitude ≤ 2500 m |
| Compatible Media | Acid, Alkali, Salt Solutions, Organic Solvents, Oils (at room temperature) |
| Power Requirement | DC 24 V, 400 W; AC 220 V / 50 Hz, 400 W |
| Construction Material | Stainless Steel Rack; 304 Stainless Steel (all product-contact parts) |
| Special Function | Supports simultaneous dosing of two different liquids; Speed & volume set from main panel |
Application Fields
The DS180/2 Double-Row Back-Sealing Automatic Packaging Machine finds extensive application across diverse industries requiring efficient, small-dose sachet packaging. It is ideally suited for the food and beverage sector, packaging items such as seasonings, sugar, salt, instant drink powders, and edible oils. In the daily chemicals industry, it expertly handles detergent powders, granules, shampoos, and lotions. The machine also serves the pharmaceutical and healthcare fields for packaging granules, powdered supplements, and liquid oral solutions. Furthermore, it is applicable for general industrial products like chemical powders, additives, and small-portion liquid agents. This machine is the optimal choice for businesses seeking to enhance productivity with double-row output, achieve a professional and stable back-seal appearance, and maintain the flexibility to switch between different product forms with dedicated, precise metering configurations.
